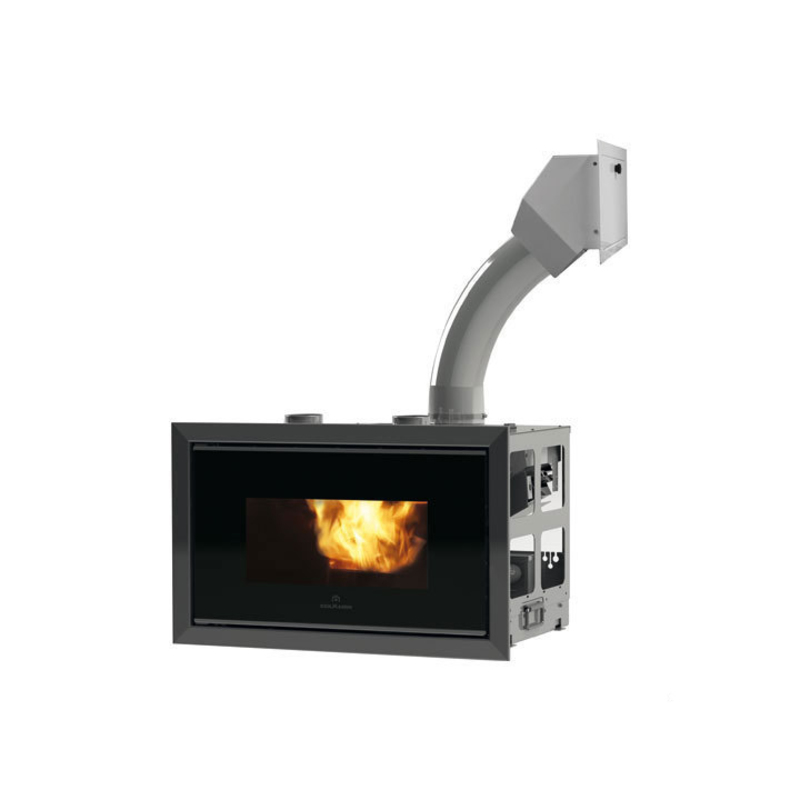

PELLET FIREPLACE
Pellkamin2 12
kW 12
Hearth ducted pellet. Pleasant vision of the flame in panoramic format to 16:9.
6 different solutions for every need, each one equipped with 2 LABEL vents cm 90x7 (LABEL) and black frame.
(A-C) Hatch loading, ventilation kit, ducted ventilation
(B-D) Tray loading, ventilation kit, ducted ventilation
(E) Hatch loading, front air, built-in ventilation.
(F) Tray loading, front air, built-in ventilation.
• cast iron combustion chamber
• top smoke outlet
• daily/weekly programming
• glass door
• ductable hot air on (mod. A -B - C - D)
• can be installed near the floor
• RELAX function
• NIGHT function
OPTIONAL
• Kit Wi-Fi
• GSM, allows for switching the stove on/off via mobile phone
| Technical data |
mod. A-C min/max |
mod. B-D min/max |
mod. E min/max |
mod. F min/max |
|
| width | cm | 93 | 93 | 93 | 93 |
| depth | cm | 60,5 | 63 | 63 | 63 |
| height | cm | 58 | 75 | 79 | 87 |
| useful output | kW | 3,8/12,6 | 3,8/12,6 | 3,8/12,6 | 3,8/12,6 |
| efficiency | % | 92,1 | 92,1 | 92,1 | 92,1 |
| fuel consumption (pellet) | kg/h | 0,8/2,9 | 0,8/2,9 | 0,8/2,9 | 0,8/2,9 |
| tank capacity | kg | 17 | 17 | 17 | 17 |
| autonomy | h | 6/21 | 6/21 | 6/21 | 6/21 |
| Ø combustion product outlet | cm | 8 | 8 | 8 | 8 |
| Ø external air intake | cm | 5 | 5 | 5 | 5 |
| total weight | kg | 247 | 271 | 249 | 273 |
| vol. that can be heated | m³ | 330 | 330 | 330 | 330 |
