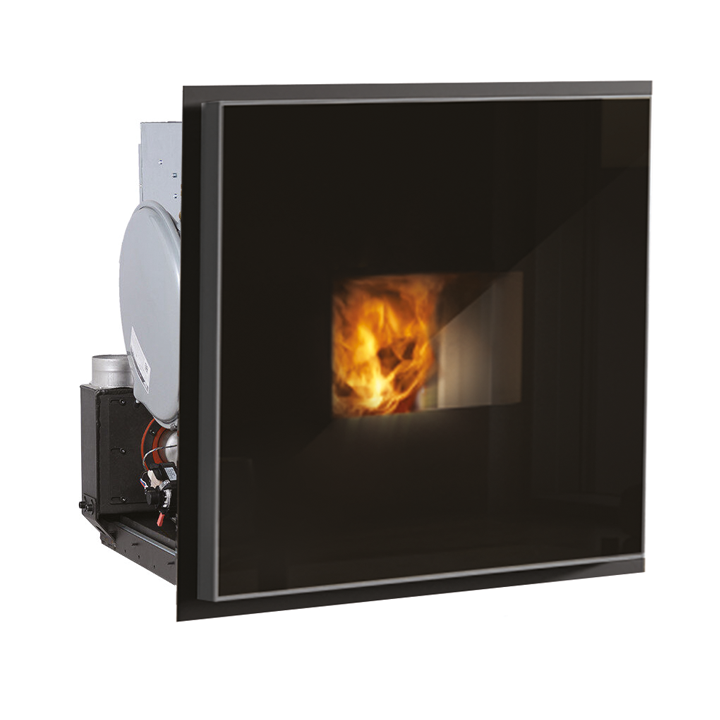

Pellet thermo fireplace
Pellkamin H 22/22+

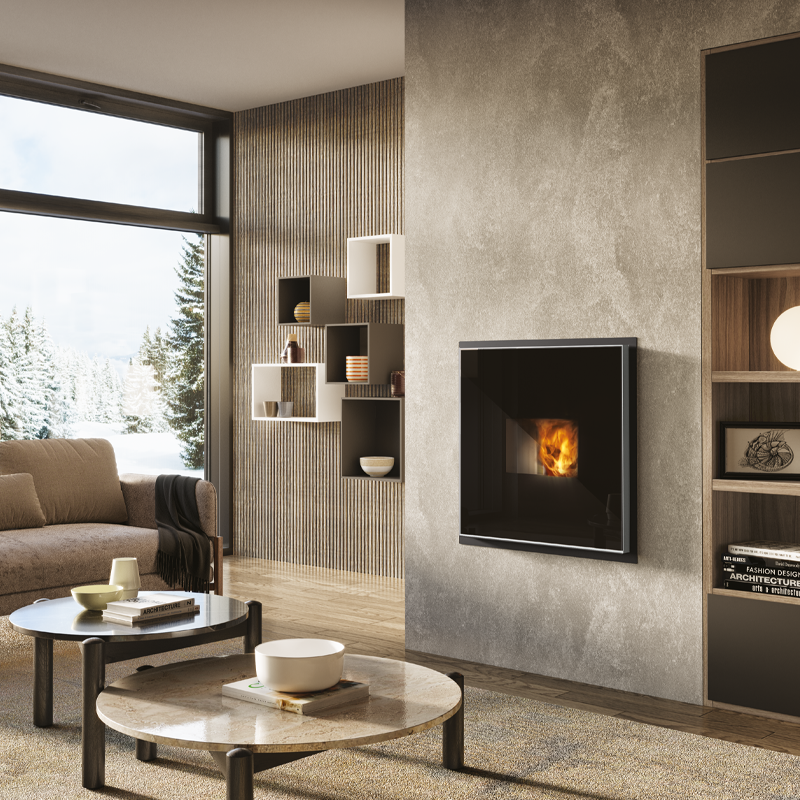

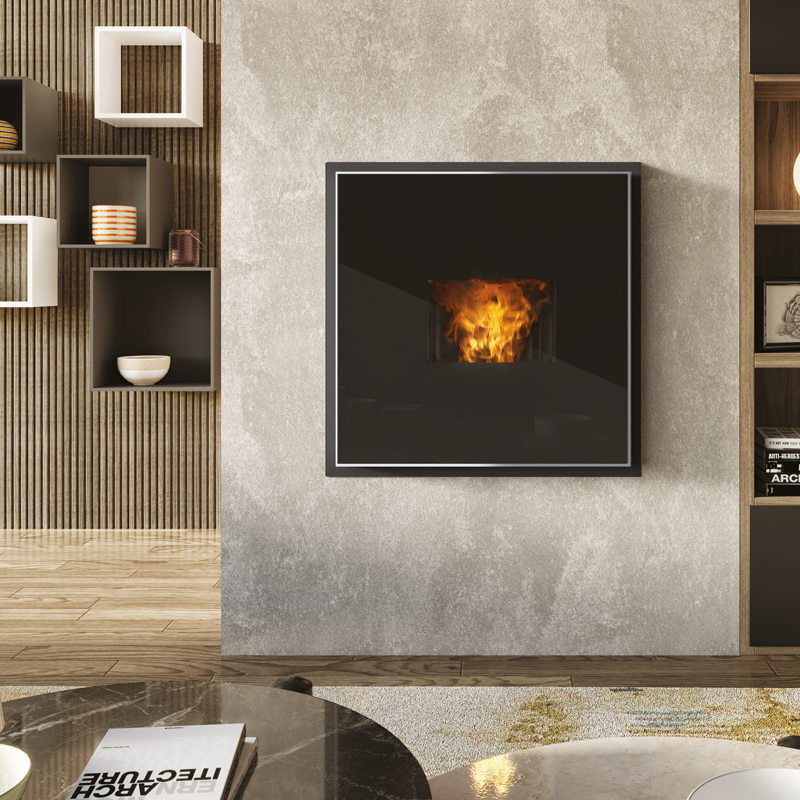

The glass will show a nice flame when the stove is burning. The magic glass will remain completely black when the stove is off, thus avoiding the fireplace view.
• corten steel structure and combustion chamber
• smoke outlet Ø 8 cm rear, male
• aesthetic door with magic glass and double locking door

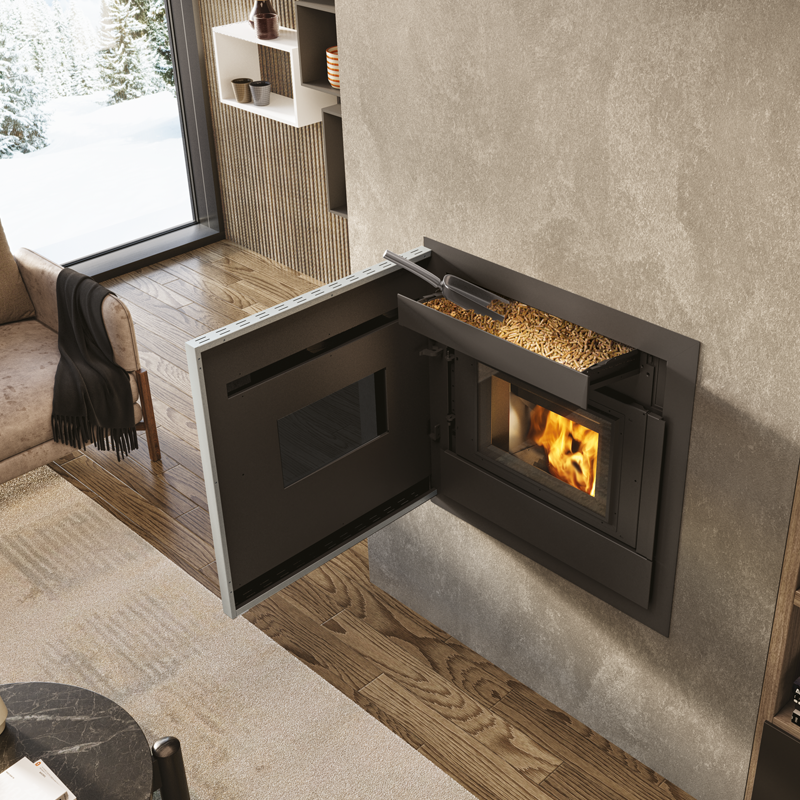

• Front loading tray kit (A)
• roduct extraction slides on guides for easy maintenance and cleaning (B)
• easy installation, complete hydraulics on board
• Daily/weekly program
• hydraulic kit with closed expansion tank
• Remote control
• integrated WIFI
Pellkamin H 22+: 1 rear ductable hot air outlet Ø 8 cm.
OPTIONAL
• Hatch loading kit with chute
• Height adjustable stand
OPTIONAL PELLKAMIN H 22+
• Hot air channelling Ø 8 cm KIT 12 - 12 bis
| Technical data | min/max | |
| width | cm | 80 |
| depth | cm | 62 |
| height | cm | 81 |
| useful output | kW | 6,6-22 |
| useful output to the water | kW | 5,2-18 |
| efficiency | % | 90,5 |
| fuel consumption | kg/h | 1,2-5,2 |
| tank capacity | kg | 28 |
| autonomy | h | 5-19 |
| water content | l | 12 |
| Ø combustion product outlet | cm | 8 |
| Ø external air intake | cm | 5 |
| total weight | kg | 180 |
| vol. that can be heated (depending on the type of system) | m³ | 575 |
| *Products under certification |
