Pellet stove
Libra 11+
Airtight pellet stoves with an elegant design. Suitable for modern passive houses. The glass will show a nice flame when the stove is burning. The magic glass will remain completely black when the stove is off, thus avoiding the firebox view.
• cast iron combustion chamber
• smoke outlet rear Ø 8, male
• "Light touch" glass external door
• push-pull opening
• double closing door
• automatic crucible cleaning
• daily/weekly program
• EASY TIMER function
• RELAX function (deactivatable hot air ventilation)
• DCS Dynamic Combustion System
• THE MIND system with Built-in WIFI
• “Mind remote” remote control
• Leonardo System
• ASH Kontrol2
Libra 11+: rear hot air duct Ø 8 cm, front and ducted fan separate settings through remote control, with choice to fit an optional room probe for the ducted fan handling.
AVAILABLE MODELS:

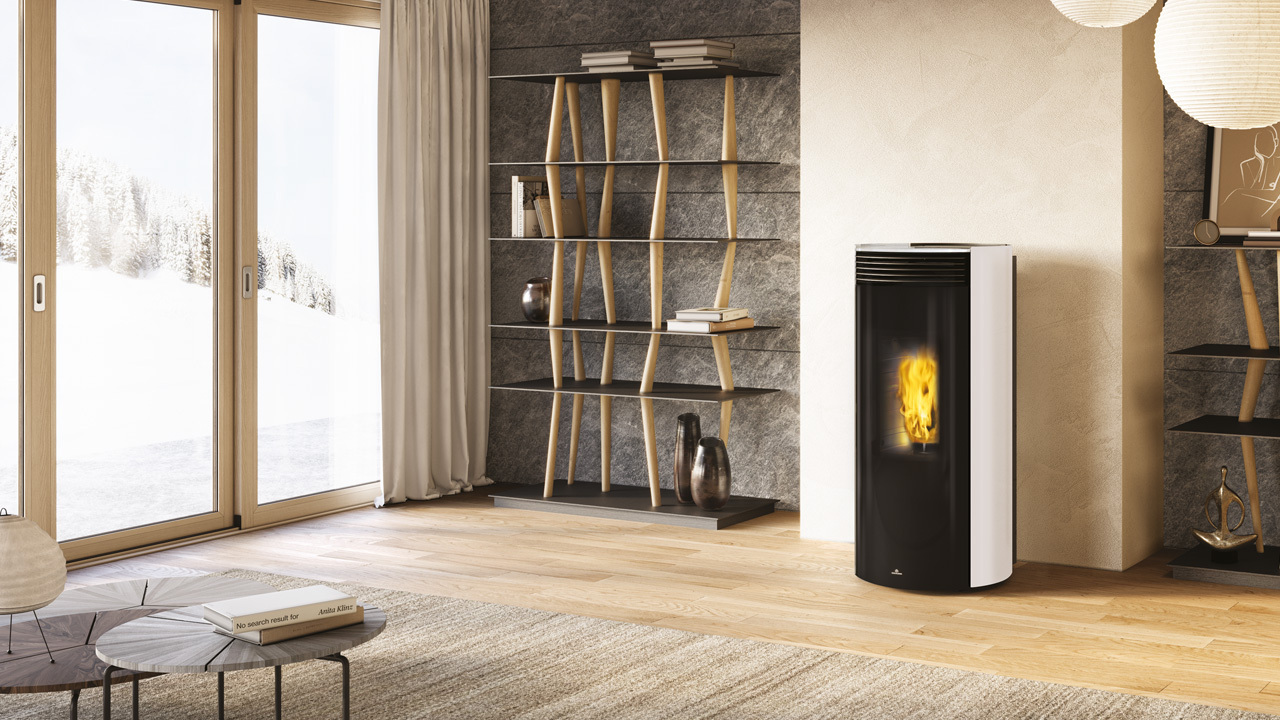

• White glass top and sides

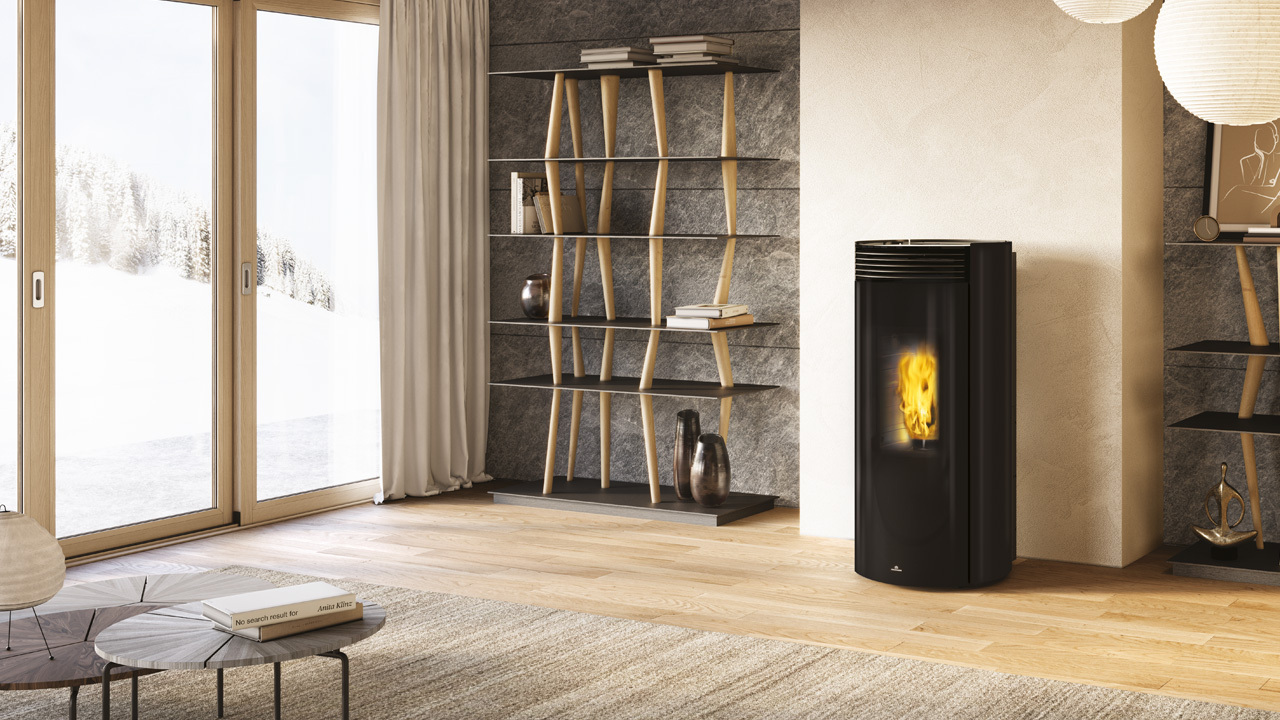

• Black glass top and sides
OPTIONAL:
• hot air channelling kit
• ducted air probes + domotic
• air diverter kit
Technical data | min/max | |
width | cm | 57 |
depth | cm | 59 |
height | cm | 121 |
useful output | kW | 4,3-11 |
efficiency | % | 90 |
fuel consumption (pellet) | kg/h | 1,1-2,7 |
tank capacity | kg | 21 |
autonomy | h | 8-19 |
Ø combustion product outlet | cm | 8 |
Ø external air intake | cm | 6 |
total weight | kg | 177 |
vol. that can be heated | m³ | 285 |
