Pellet stove
Rise 9+
A pellet stove with a clean, linear design. When the stove is switched off, the semi-transparent Robax® Nightflame glass reduces visibility, partially concealing the firebox.
Suitable for modern passive houses.
NATURAL CONVECTION (Ventilation can be fully deactivated)
• smoke outlet rear Ø 8, male (Back)
• double closing door
• automatic crucible cleaning
• daily/weekly program
• EASY TIMER function
• RELAX function (deactivatable hot air ventilation)
• DCS Dynamic Combustion System
• Fire Control
• ASH Kontrol2
• Pellet level sensor
• System The Mind with built-in WIFI
• “Mind remote” remote control
• Leonardo System
Rise 9+: rear hot air duct Ø 8 cm, front and ducted fan separate settings through remote control, with choice to fit an optional room probe for the ducted fan handling.
AVAILABLE MODELS:

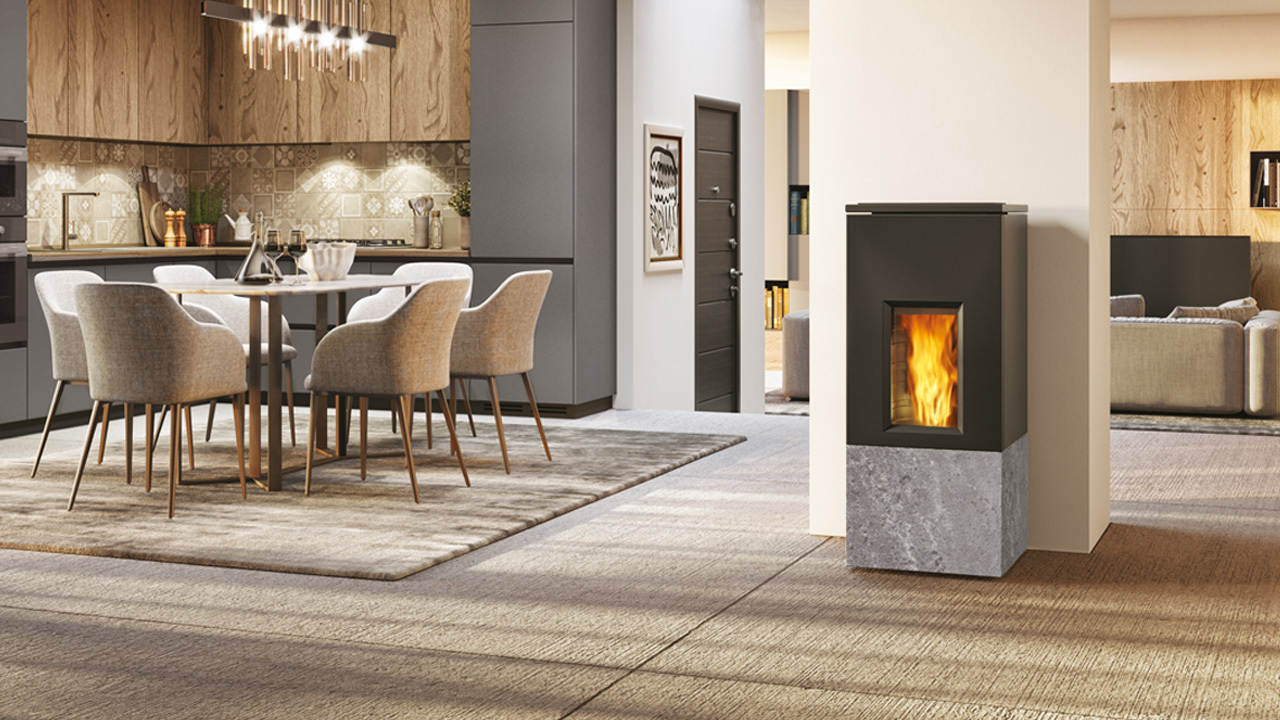

• Soapstone
• Stone Limestone
• Conversion kit for TOP output
• hot air channelling kit
• ducted air probes + domotic
• air diverter kit
| Dati tecnici | min/max | |
| larghezza | cm | 47 |
| profondità | cm | 56 |
| altezza | cm | 111 |
| potenza utile | kW | 2,6-9,2 |
| rendimento | % | 90,4 |
| consumo di combustibile (pellet) | kg/h | 0,6-2,1 |
| capacità serbatoio | kg | 15 |
| autonomia | h | 7-25 |
| Ø uscita fumi | cm | 8 |
| Ø presa aria | cm | 6 |
| peso complessivo | kg | 160 |
| vol. riscaldabile (isolamento previsto legge 10/91) | m³ | 240 |
