Lumea 9+
Steel
kW
Pellet stove
Lumea 9+
Steel

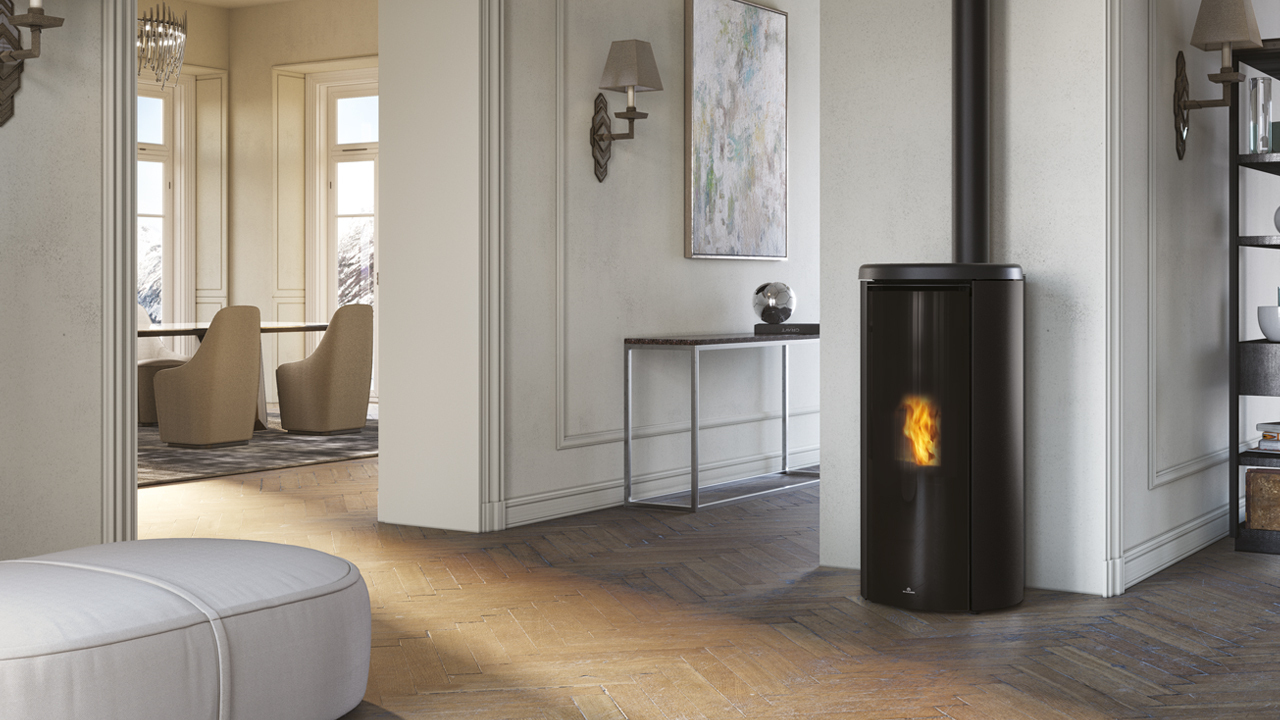

ucted, airtight pellet stoves with an elegant design. Suitable for modern passive houses The glass will show a nice flame when the stove is burning. The magic glass will remain completely black when the stove is off, thus avoiding the fireplace view.
Sliding top for feeding pellet.
• cast iron combustion chamber
• smoke outlet upper Ø 8 cm (Lumea 9+ Top)
• smoke outlet upper Ø 8/13 cm coaxial (Lumea 9+ Coax)
• external “light touch” door in Magic glass
• push-pull opening
• double pellet tank closing system
• Daily/weekly program
• EASY TIMER function
• RELAX function (Deactivatable hot air ventilation)
• “Mind remote” remote control
• System The Mind with built-in WIFI
• System Leonardo
• Rear hot air duct Ø 6 cm, front and ducted fan separate settings through remote control, with choice to fit an optional room probe for the ducted fan handling
AVAILABLE MODELS
• Black steel sides
OPTIONAL:• Warm air ducting kit
• Vents Split, Bent, Origami, Sharp
• Ducted air probes + domotic
• Ø 6 air diverter kit
| Technical data | min/max | |
| width | cm | 54 |
| depth | cm | 57 |
| height | cm | 112 |
| useful output | kW | 2,7/9,6 |
| efficiency | % | 90,7 |
| fuel consumption (pellet) | kg/h | 0,6/2,2 |
| tank capacity | kg | 18 |
| autonomy | h | 8/30 |
| Ø combustion product outlet | cm | 8/13 |
| Ø external air intake | cm | 6 |
| total weight | kg | 138/141 |
| vol. that can be heated | m³ | 250 |
