Libra 9+

7 kW

Pellet stove

Libra 9+

Airtight pellet stoves with an elegant design. Suitable for modern passive houses. The glass will show a nice flame when the stove is burning. The magic glass will remain completely black when the stove is off, thus avoiding the fireplace view.
NATURAL CONVECTION (Ventilation can be fully deactivated)

• cast iron combustion chamber
• smoke outlet rear Ø 8, male (Libra 9+ Back)
• smoke outlet upper Ø 8/13 cm coaxial, female (Libra 9+ Coax)
• "Light touch" glass external door
• push-pull opening
• double closing door
• automatic crucible cleaning
• daily/weekly program
• EASY TIMER function
• RELAX function (deactivatable hot air ventilation)
DCS Dynamic Combustion System
THE MIND system with Built-in WIFI
“Mind remote” remote control
• Leonardo System
• ASH Kontrol2

Libra 9+: rear hot air duct Ø 8 cm, front and ducted fan separate settings through remote control, with choice to fit an optional room probe for the ducted fan handling.

AVAILABLE MODELS:

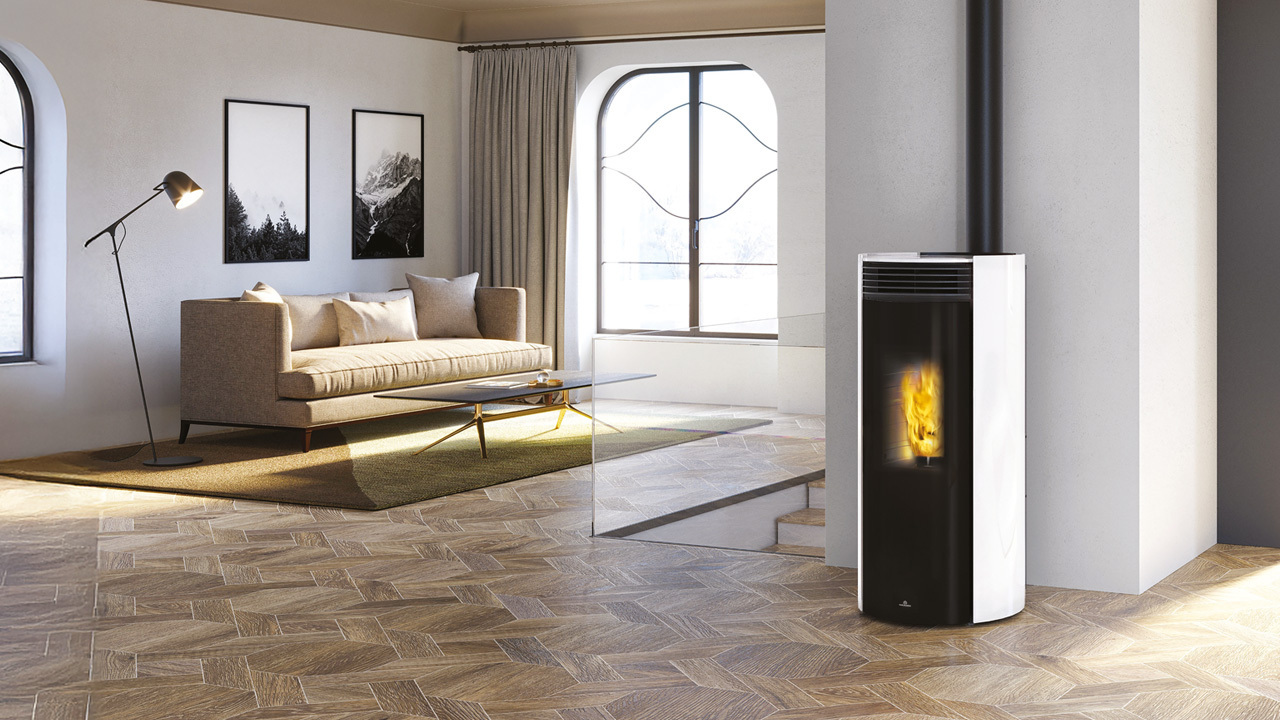

• White glass top and sides

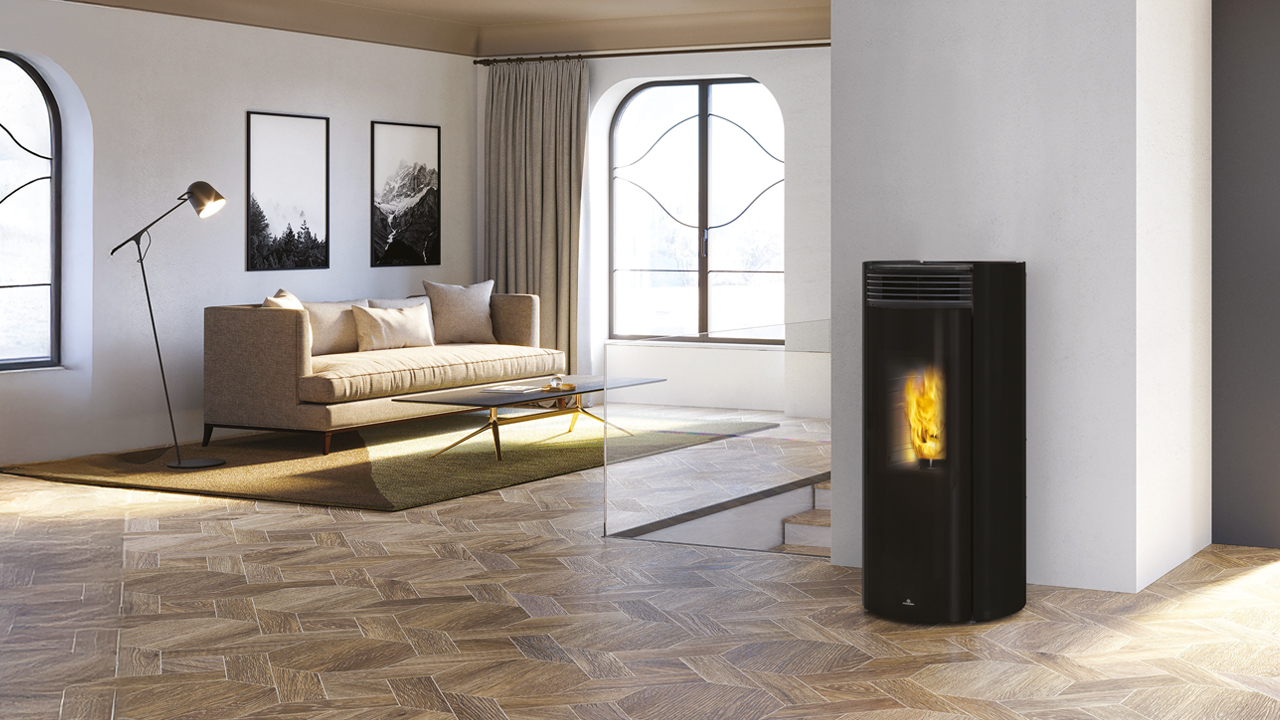

• Black glass top and sides

OPTIONAL:

hot air channelling kit
• ducted air probes + domotic
• air diverter kit

Technical data min/max
width cm 54
depth cm 58/70
height cm 115
useful output kW 2,6-9,2
efficiency % 90,4
fuel consumption (pellet) kg/h 0,6-2,1
tank capacity kg 15
autonomy h 7-25
Ø combustion product outlet cm 8/13
Ø external air intake cm 6
total weight kg 152/160
vol. that can be heated 240
