Libra X 9+

9 kW

Pellet stove

Libra X 9+

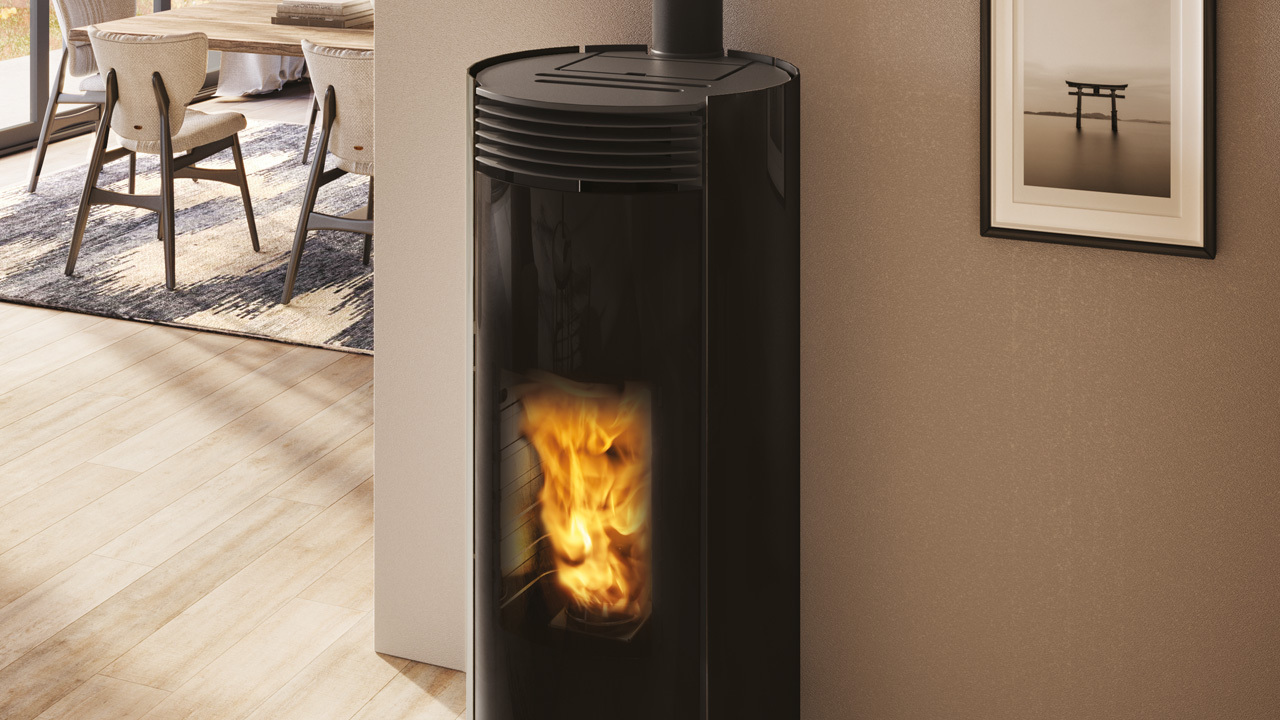

Airtight pellet stoves with an elegant design. Suitable for modern passive houses. The glass will show a nice flame when the stove is burning. The magic glass will remain completely black when the stove is off, thus avoiding the firebox view.

NATURAL CONVECTION (Ventilation can be fully deactivated)


• cast iron combustion chamber
• smoke outlet upper Ø 8 (Top)
• smoke outlet upper Ø 8/13 cm coaxial (Coax)
• double closing door
• automatic crucible cleaning
• daily/weekly program
• EASY TIMER function
• RELAX function (deactivatable hot air ventilation)
• DCS Dynamic Combustion System
• THE MIND system with Built-in WIFI
• “Mind remote” remote control
• Leonardo System
• ASH Kontrol2
• Fire Control

Libra 9+: rear hot air duct Ø 8 cm, front and ducted fan separate settings through remote control, with choice to fit an optional room probe for the ducted fan handling.

AVAILABLE MODELS:

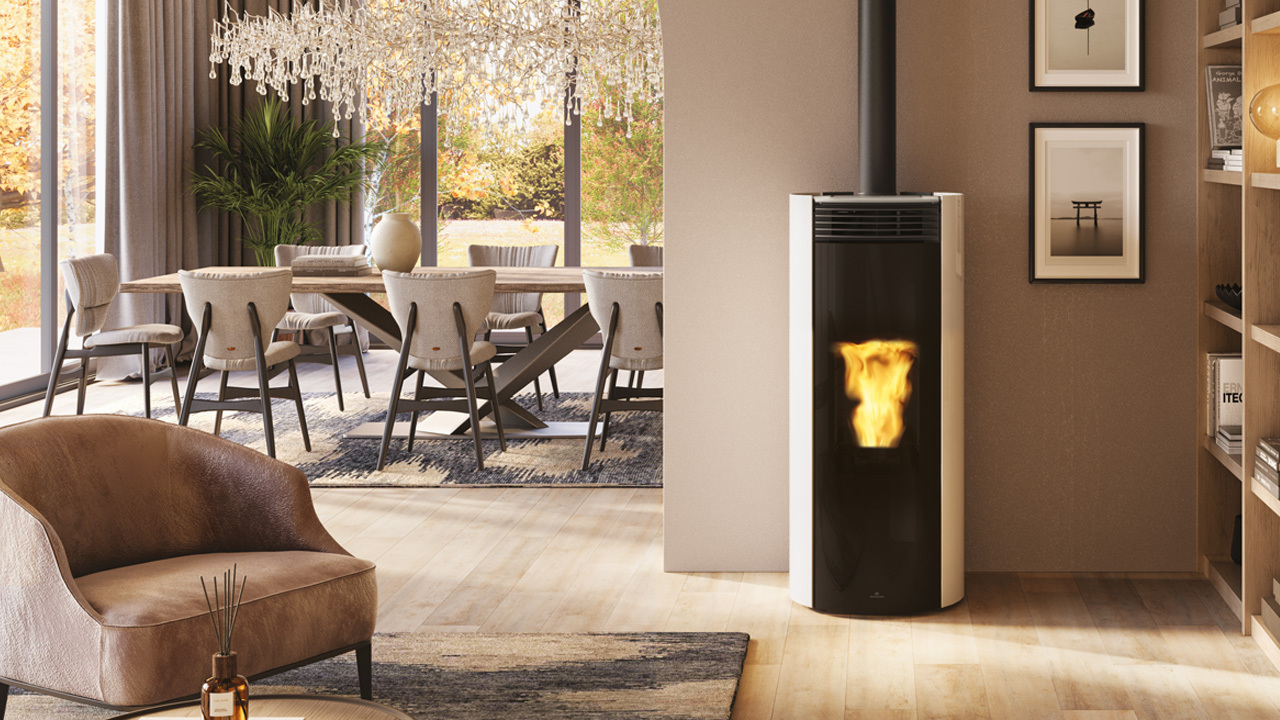

• White glass top and sides
• Black glass top and sides

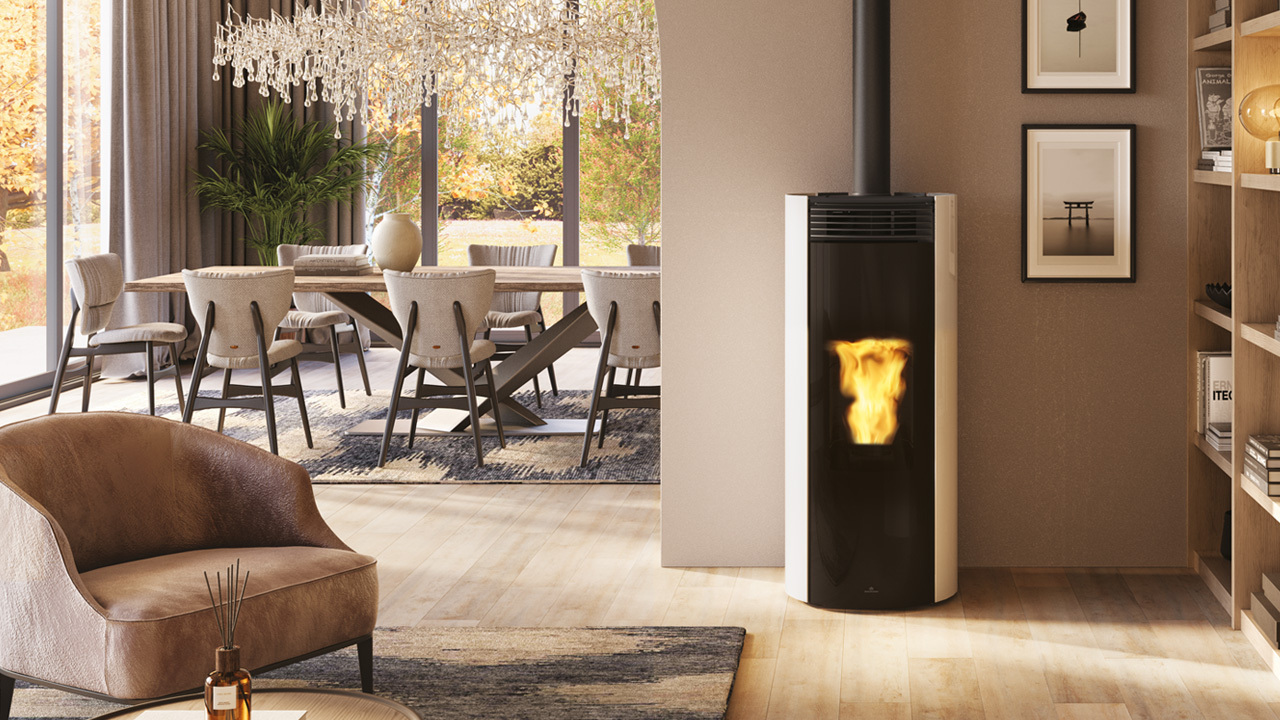

• White steel sides
• Black steel sides
• Mocha steel sides
• Sablé steel sides

OPTIONAL:

• hot air channelling kit
• ducted air probes + domotic
• air diverter kit


Technical data min/max
width cm 55
depth cm 58
heigth cm 125
useful output kW 2,6-9,2
efficiency % 90,4
fuel consumption (pellet) kg/h 0,6-2,1
tank capacity kg 15
autonomy h 7-25
Ø combustion product outlet cm 8/13
Ø external air intake cm 6
total weight kg 145
vol. that can be heated m³ 240
