Tratto 9+
9 kW
Pellet stove
Tratto 9+
Space-saving PELLET STOVES, just 32 cm deep
Suitable for modern passive houses.
NATURAL CONVECTION (ventilation can be completely deactivated)
• Cast iron combustion chamber
• Smoke outlet Ø 8 cm upper (Top)
• Smoke outlet Ø 8/13 cm upper coaxial (Coax)
• Smoke outlet Ø 8 cm rear (Back)
• 1 hot air outlet with Ø 8 cm. The ducted outlet can be oriented to the rear or side of the product, with an optional kit
• Double hearth closure door
• Source mode pellet feed
• Daily/weekly program
• EASY TIMER function
• RELAX function with NATURAL CONVECTION
• Pellet level sensor
• “Mind remote” remote control
• System The Mind with built-in WIFI
• System Leonardo
Tratto 9+: Rear hot air duct Ø 8 cm, front and ducted fan separate settings through remote control, with choice to fit an optional room probe for the ducted fan handling.
AVAILABLE MODELS:

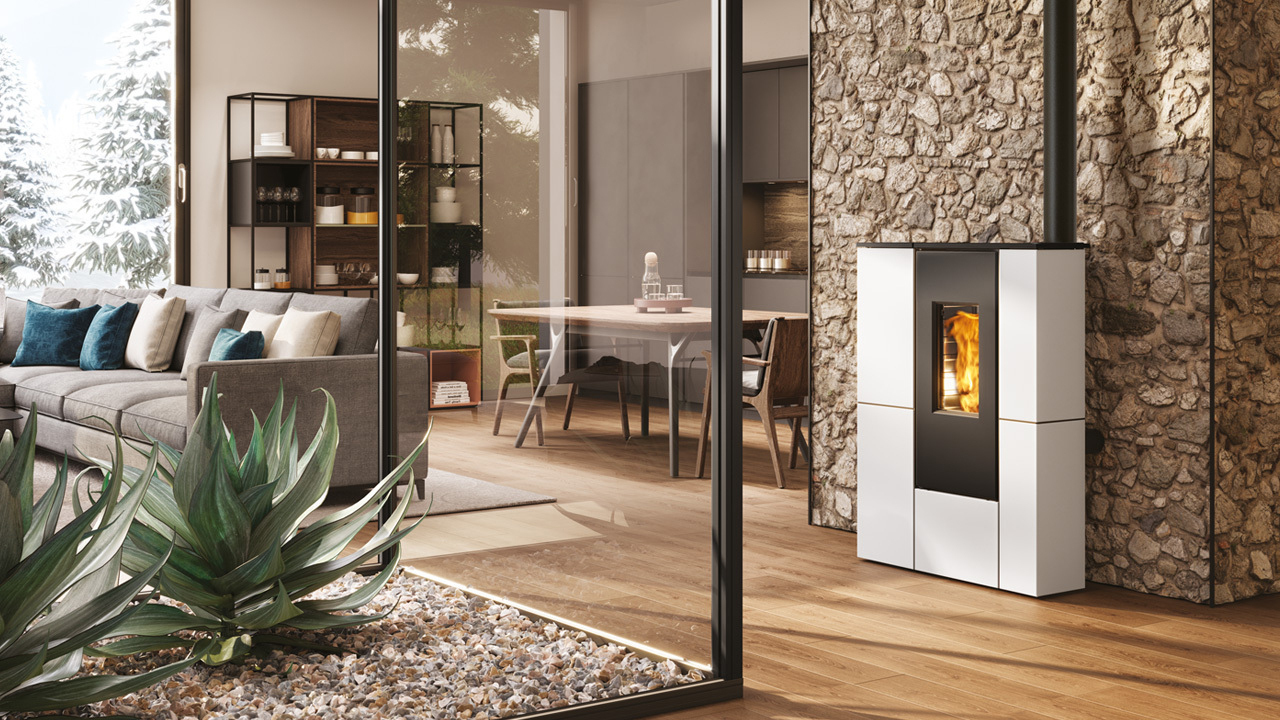

• White steel sides

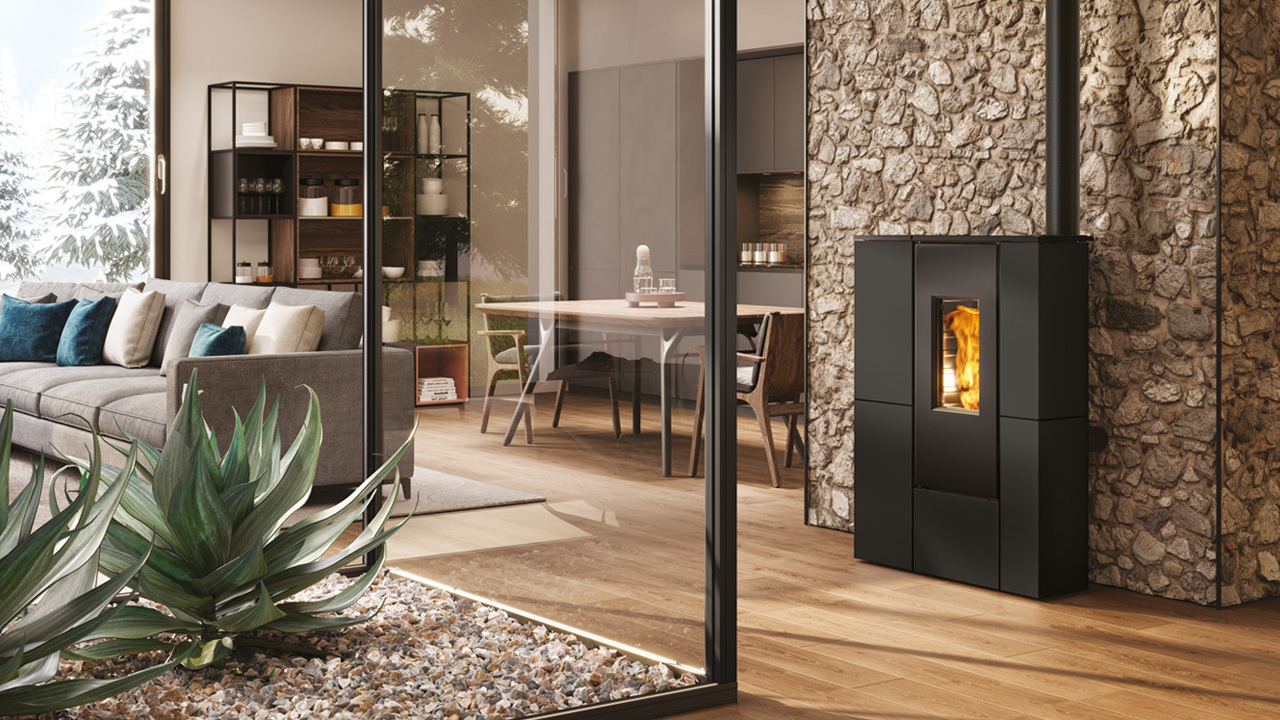

• Black steel sides

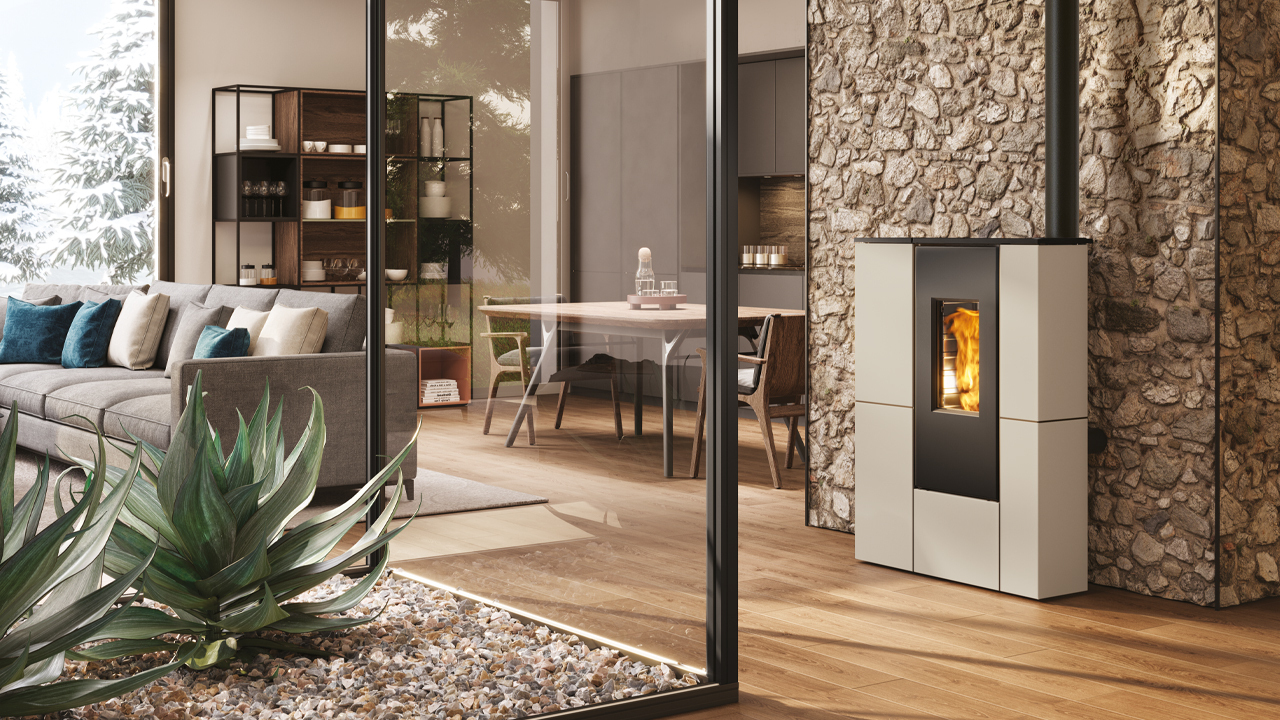

• Sable steel sides
• hot air channelling kit
• ducted air probes + domotic
• air diverter kit
| Technical data undergoing certification | min/max | |
| width | cm | 86 |
| depth | cm | 32 |
| height | cm | 110,5 |
| useful output | kW | 3,7-9 |
| efficiency | % | 89,2 |
| fuel consumption (pellet) | kg/h | 0,9-2,2 |
| tank capacity | kg | 20 |
| autonomy | h | 9-22 |
| Ø combustion product outlet | cm | 8/13 |
| Ø external air intake | cm | 6 |
| total weight | kg | 150 |
| vol. that can be heated | m³ | 235 |
