Rise 13++ Int

13 kW

Pellet stove

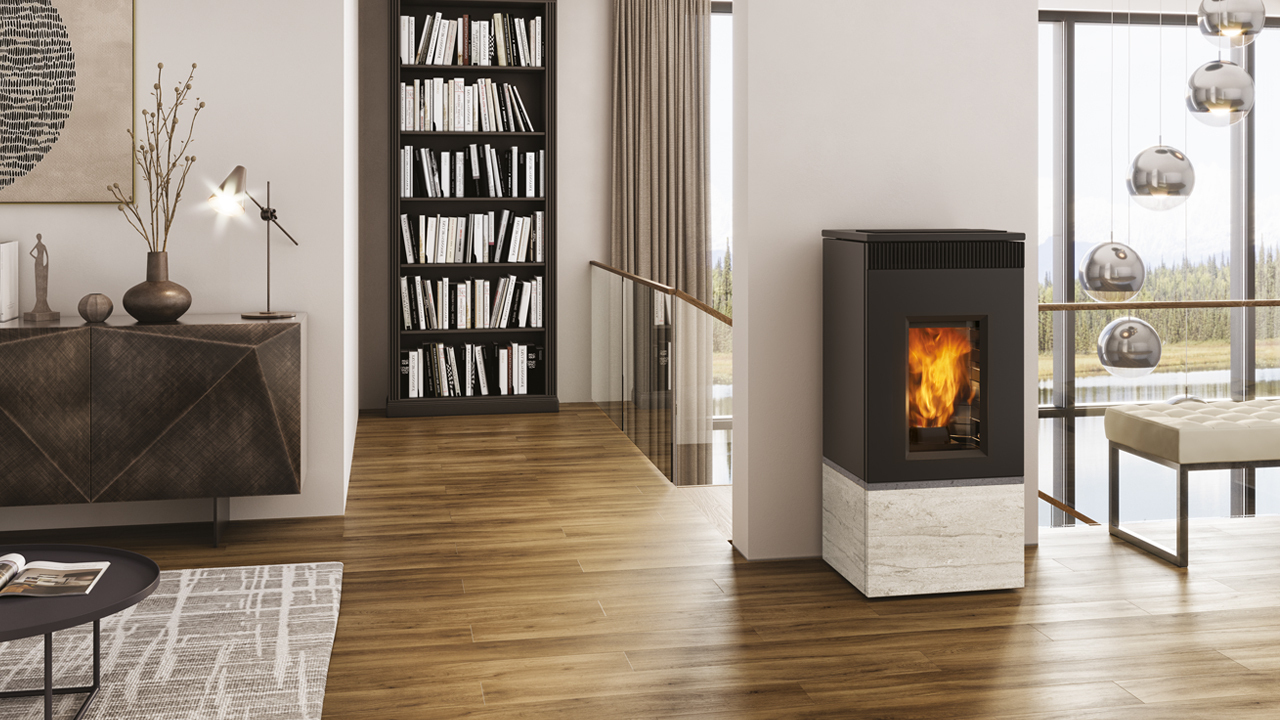

Rise 13++ Int

A pellet stove with a clean, linear design. When the stove is switched off, the semi-transparent Robax® Nightflame glass reduces visibility, partially concealing the firebox.

Suitable for modern passive houses.


• cast iron combustion chamber
• smoke outlet rear Ø 8, male (Back)

• double closing door
• automatic crucible cleaning
• daily/weekly program
• EASY TIMER function
• RELAX function (deactivatable hot air ventilation)
• DCS Dynamic Combustion System
• Fire Control
• ASH Kontrol2
• Pellet level sensor
• System The Mind with built-in WIFI
• “Mind remote” remote control
• Leonardo System

2 rear hot air duct Ø 8 cm, front and ducted fan separate settings through remote control, with choice to fit an optional room probe for the ducted fan handling.

AVAILABLE MODELS:
• Soapstone
• Stone Limestone

OPTIONAL
• hot air channelling kit

• ducted air probes + domotic
• air diverter kit

Technical data min/max
width cm 54,5
depth cm 51
height cm 119
useful output kW 3,1-12,4
efficiency % 88,1
fuel consumption (pellet) kg/h 0,9-3,1
tank capacity kg 21
autonomy h 7-23
Ø combustion product outlet cm 8
Ø external air intake cm 6
total weight kg 198
vol. that can be heated m³ 325
